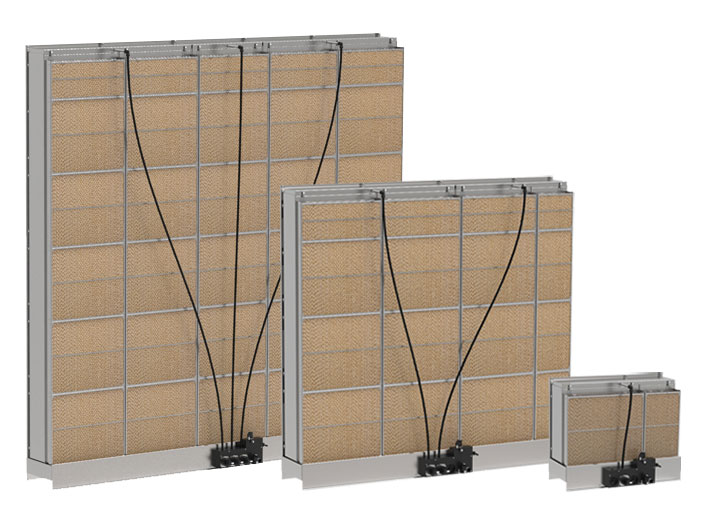

Condair MC evaporative humidifier & cooler

The Condair MC is an in-duct evaporative humidifier that provides low energy humidification and cooling. A single unit can offer up to 360kg/h of humidity and approximately 245kW/h of adiabatic cooling to an air handling unit.

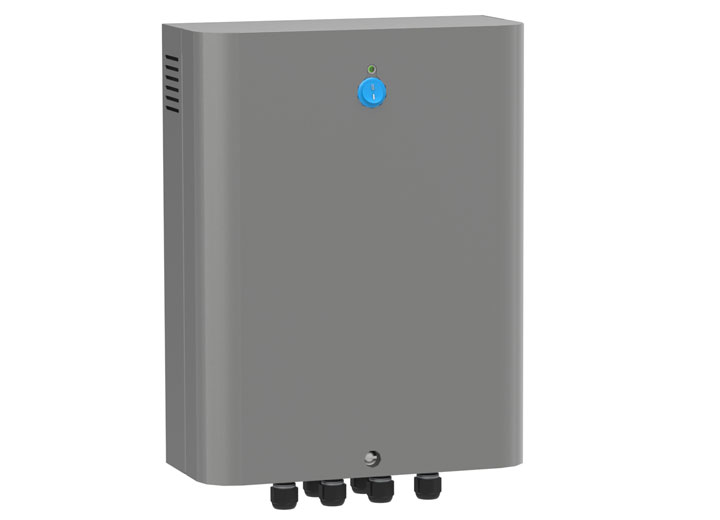

The humidifier incorporates quality components, such as long-lasting glass fibre evaporative media and stainless steel construction. It has a PCB control panel and many integrated hygiene control features, such as anti-microbial impregnated media, UV hygiene option, and flush and drain cycles.

Intelligent design makes installation easy with modular construction.

Features and benefits

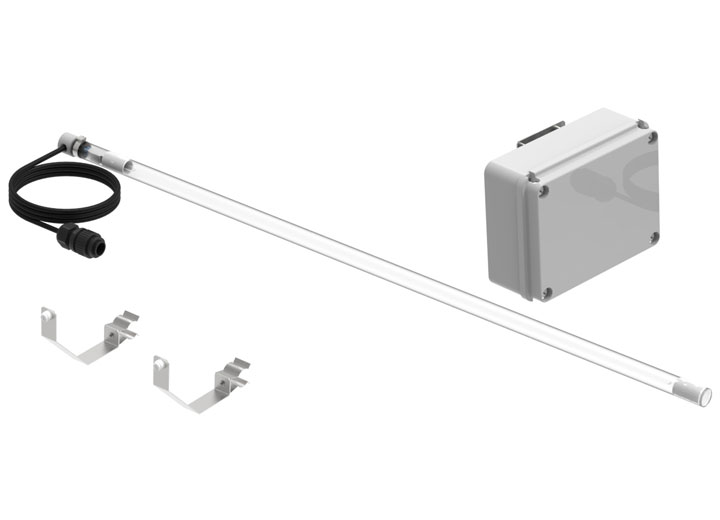

  • Hygiene features include automated flush and drain cycles, antimicrobial impregnated glass fibre media and optional submerged UV water treatment.
  • High quality evaporative cassette construction with 304 stainless steel frame.
  • Independently certified to be non-particle releasing and fire rated Euro Class A2-S2-D0 (UL900).

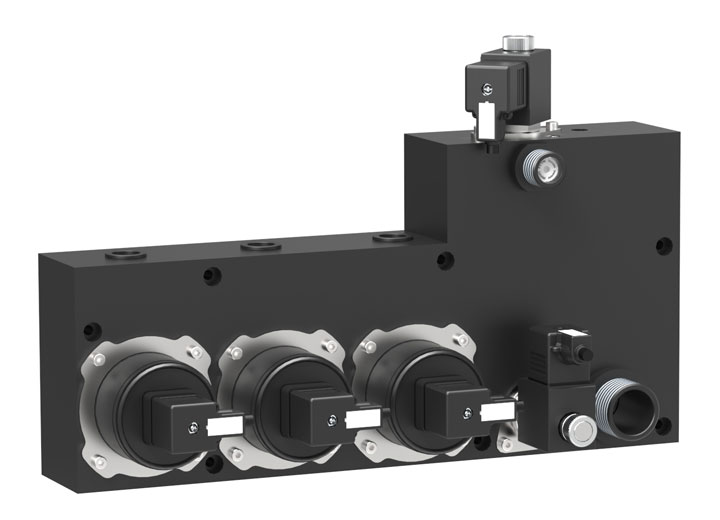

  • Low energy, long-life pumps with magnetic impellors, which have frictionless motion, virtually silent operation and an extremely long service lifetime.

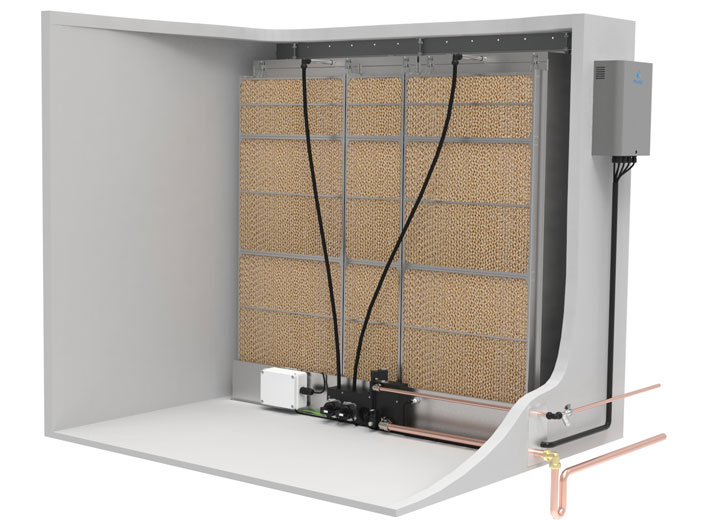

  • Up to three stages of control as standard.

Cooling & humidity control

Evaporative humidifiers provide around 0.68kW of adiabatic cooling for every 1kg of humidity absorbed by the airstream.

Get expert advice on your AHU humidifier

Listen to our podcast on how humidifiers can be used for evaporative cooling in air handling units.
