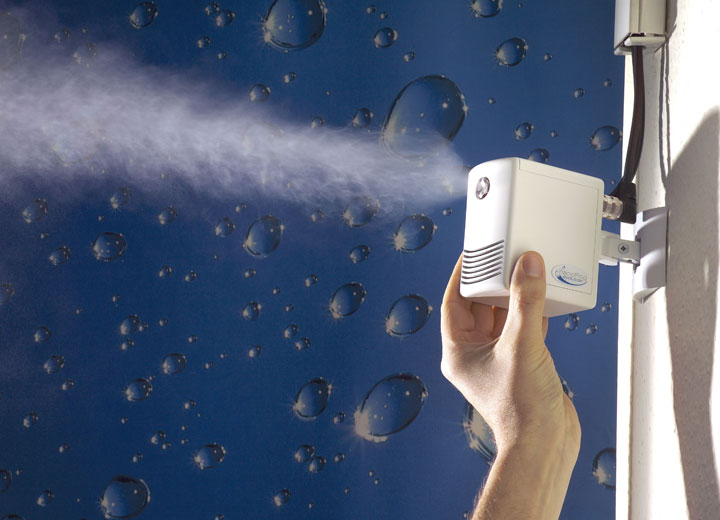

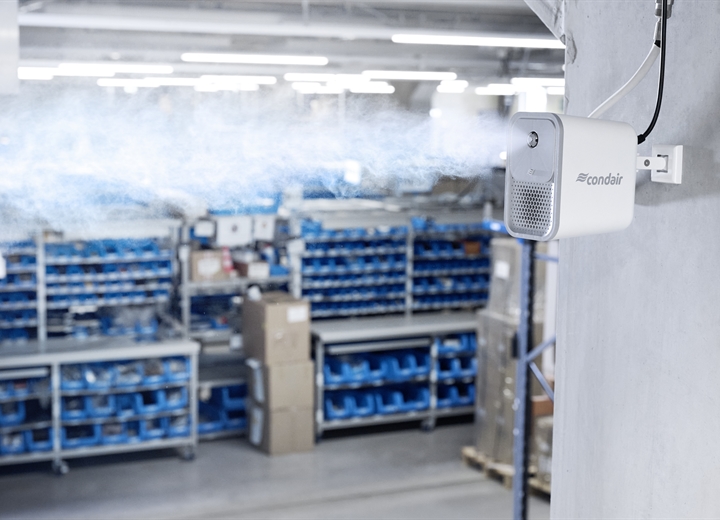

Discrete in-room spray humidifier with nozzle units just 10cm high
Offers low energy, high quality humidity control with quiet operation
Ideal for offices or buildings without central air handling units
Nozzles can be wall or ceiling mounted and provide up to 3kg/hr each

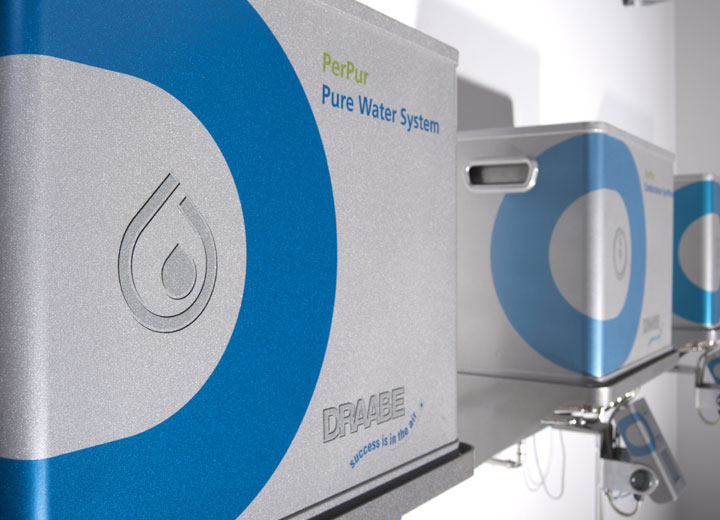

Self-contained water treatment and pump station modules provide pure, hygienic water to nozzles
Pump and water treatment modules are exchanged to reduce on-site service requirements and downtime
NanoFog users receive fully refurbished, disinfected and hygienic water treatment and pump modules every 6-8 months
In-room hygrostats provide zone control capability

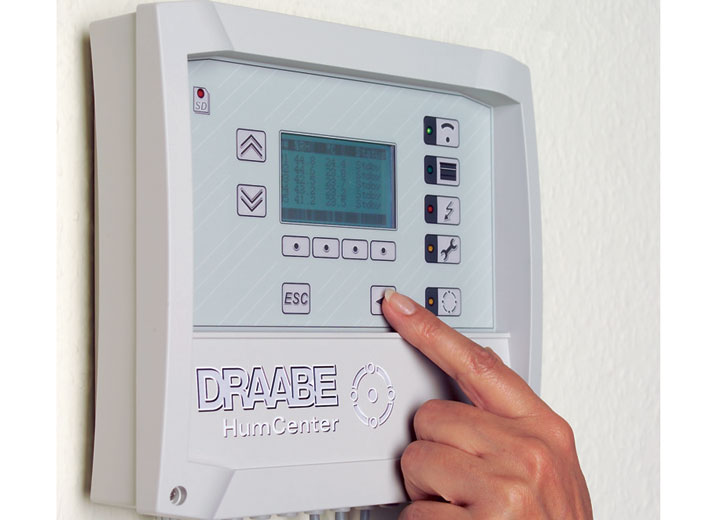

Central control panel for the entire system, providing information on all zones and service modules

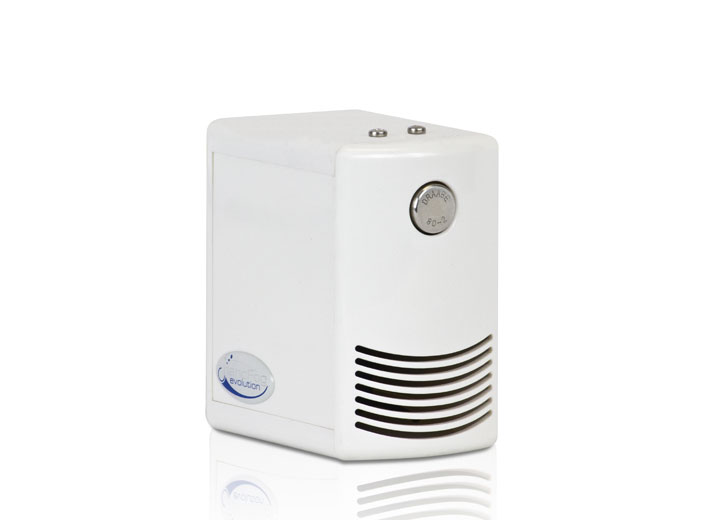

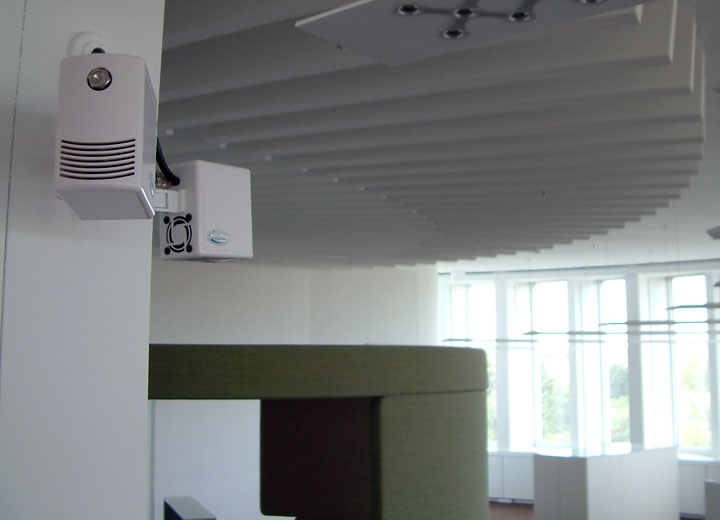

Draabe NanoFog Evolution
High pressure spray humidifier

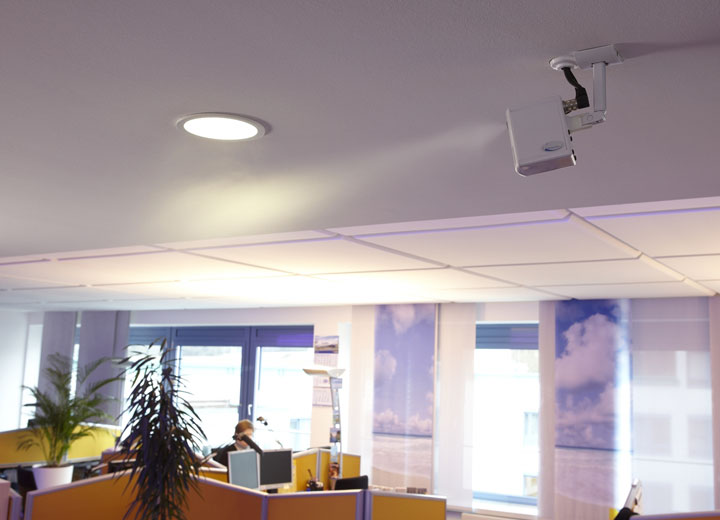

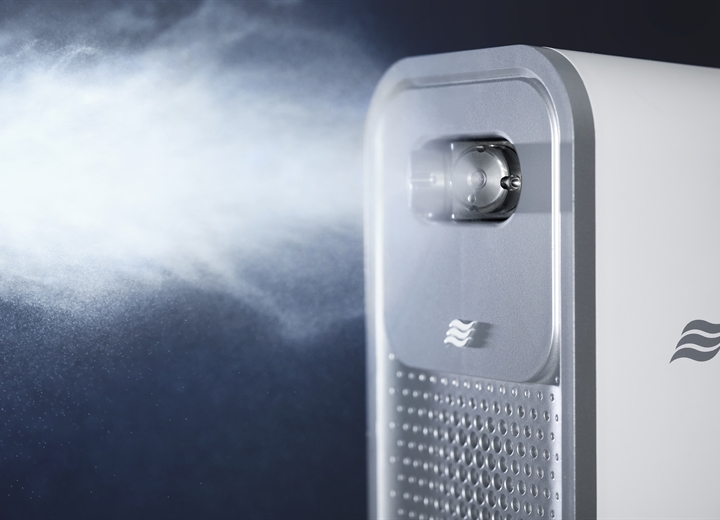

This quiet and discrete in-room spray humidifier is ideal for commercial buildings that do not have central air handling units. The nozzles are barely audible, just 10cm high and each can deliver up to 3kg/hr of humidification directly to a room with rapid evaporation.
Multiple nozzles can be combined and controlled from a central panel to deliver up to 200kg/hr with zone control allowing humidity levels to be controlled independently in different rooms.
Features & benefits
- Small, attractive and discrete in-room nozzles
- Very quiet operation
- Ideal for buildings without a central AHU
- Zone control for management of individual room humidity levels
- Low on-site service requirement

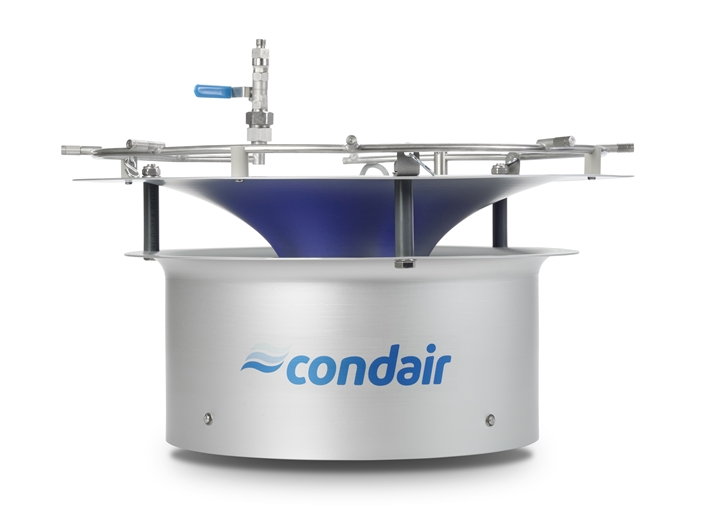

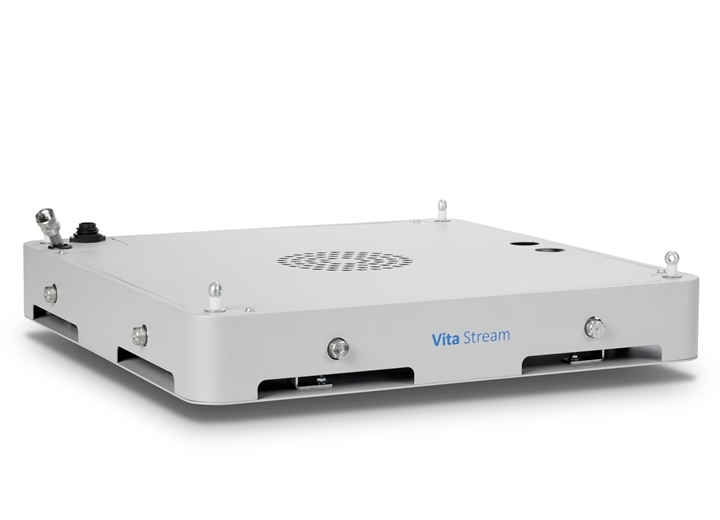

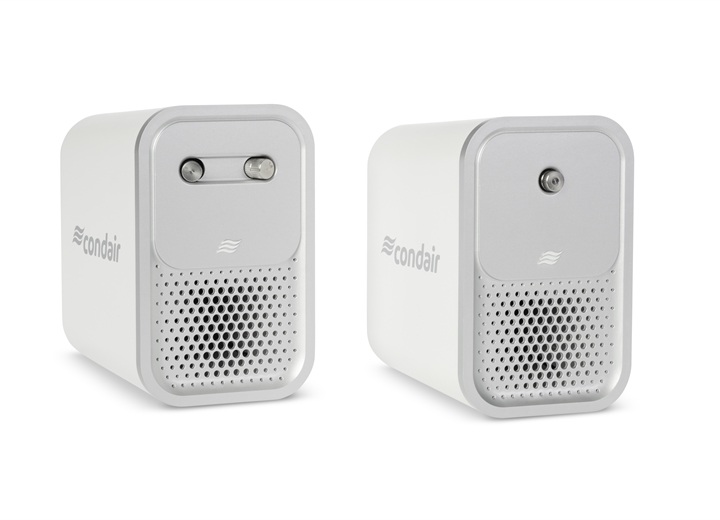

A comprehensive range of nozzle modules for different outputs, all with built-in fan units and an attractive design

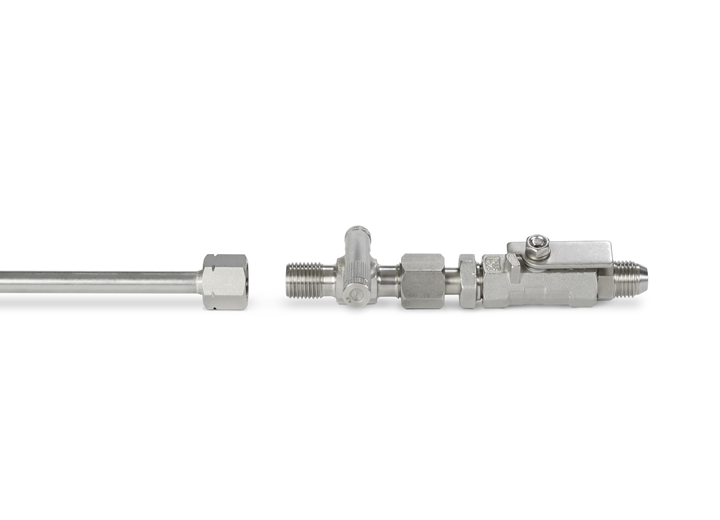

Flexible piping allows nozzles to be located wherever they are needed for optimal humidification

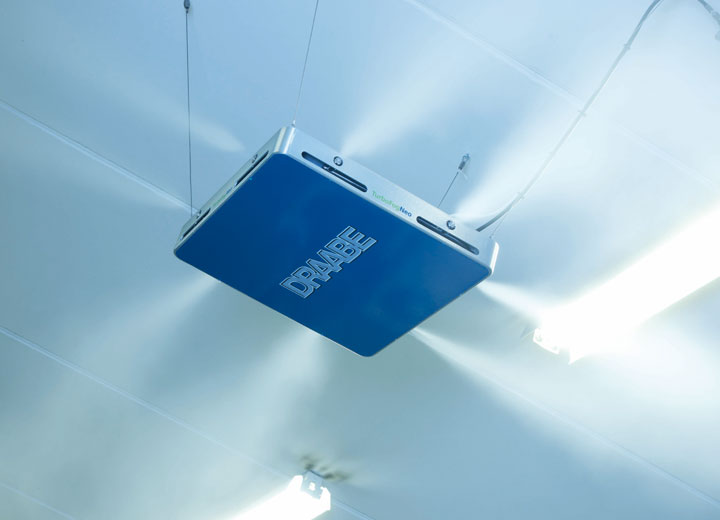

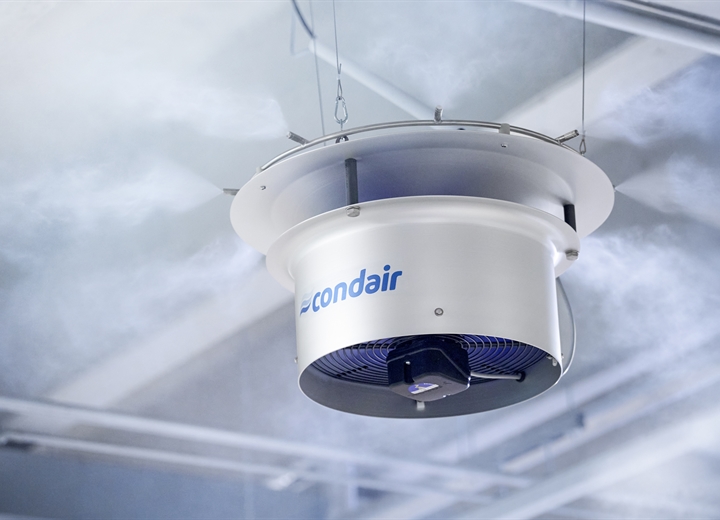

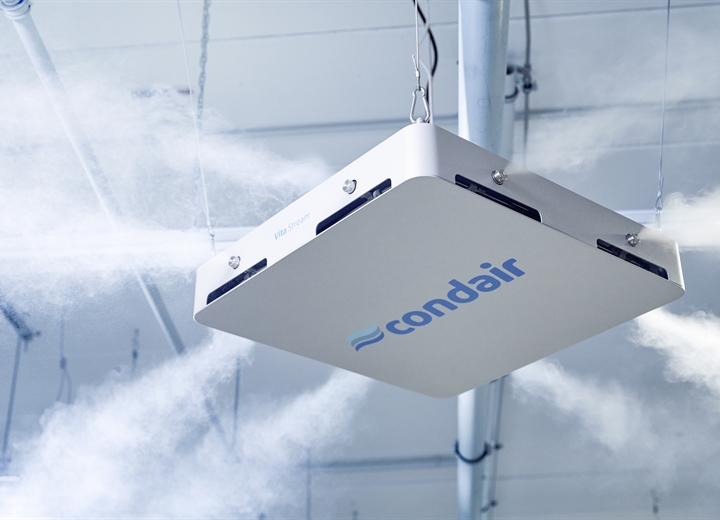

Ceiling-mounted distrubtion systems provide up to 32kg/h each
Micro-fine atomization is acheived without compressed air, which saves energy and ensures quiet operation

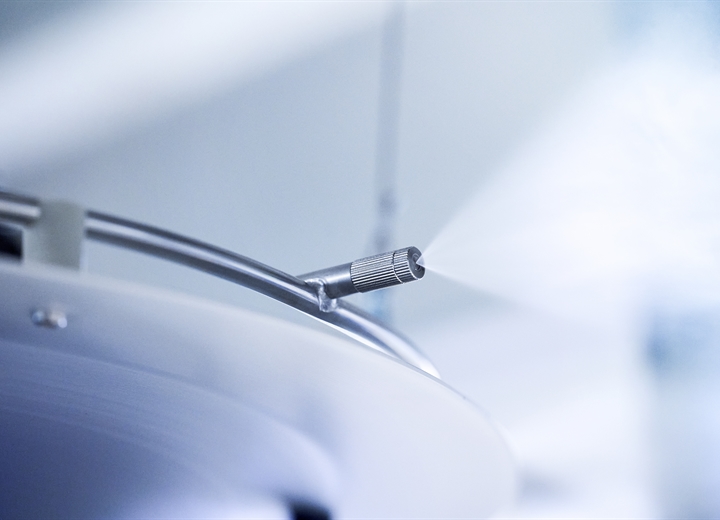

Spray heads are highly adjustable to direct aerosols precisely where they are needed

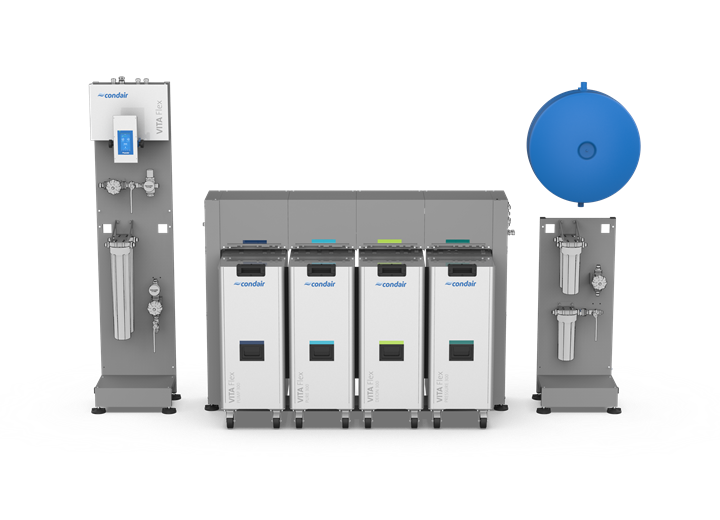

Self-contained water treatment and pump station modules provide pure, hygienic water to nozzles
Pump and water treatment modules are exchanged to reduce on-site service requirements and downtime

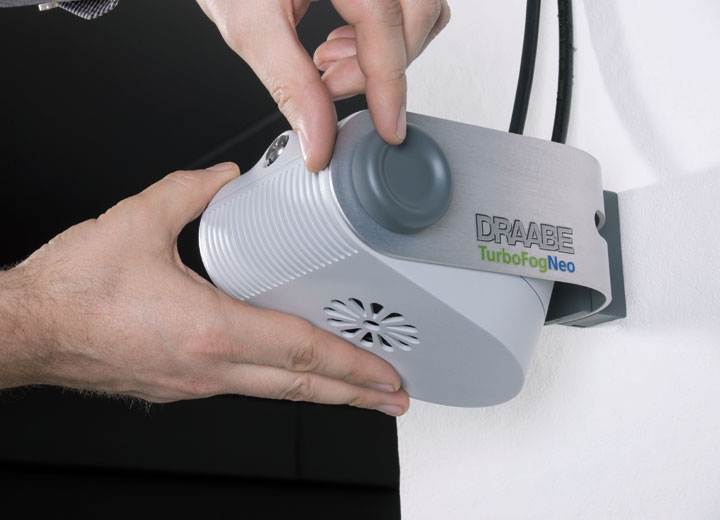

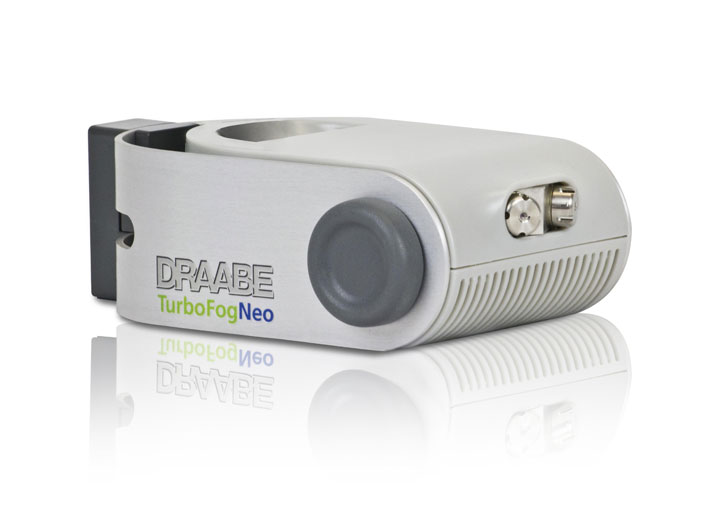

Draabe TurboFog Neo
High pressure spray humidifier

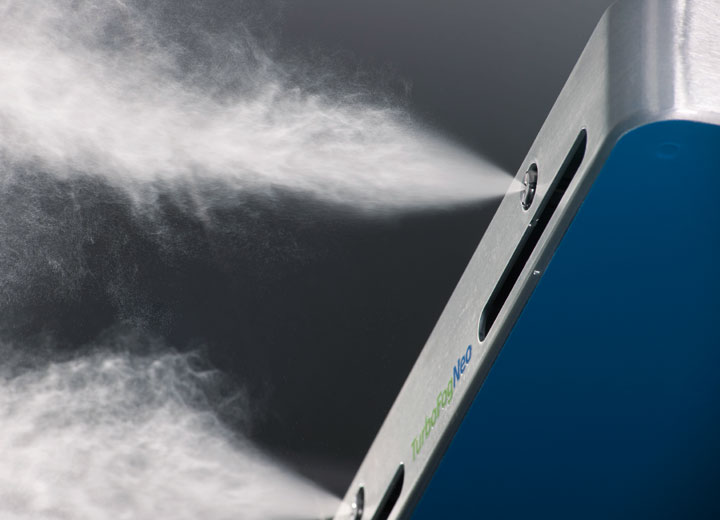

This direct room high pressure spray humidifier has a variety of distribution units to ensure the optimal configuration can be employed for any individual areas. Outputs vary from a maximum of 4-32kg/h, each with a compact, discrete and attractive design.
Draabe users benefit from a service module exchange system, whereby the water treatment and pump stations are returned for servicing while new ones replace them on-site. This reduces on-site servicing and associated downtime while ensuring hygienic and efficient operation at all times.
Features & benefits
- Flexible positioning of energy efficient high pressure nozzle systems
- Compact, attract design with multiple configuration options
- Built-in high performance fans distribute humidity rapidly in the air
- All hydrophilic parts made of quality stainless steel for long operation and hygiene
High pressure humidifier ideal for commercial and industrial areas
Fan unit uniformly disperses the sprays without any drips or the need for compressed air
Each individual distribution unit can deliver between 12-54l/h while operating on only 120W and quietly at just 59dBa
Operates on RO water to ensure dust-free humidification for a room
Pump station can provide water UV sterilisation, softening, particle and RO filtration, as well as pressurisation

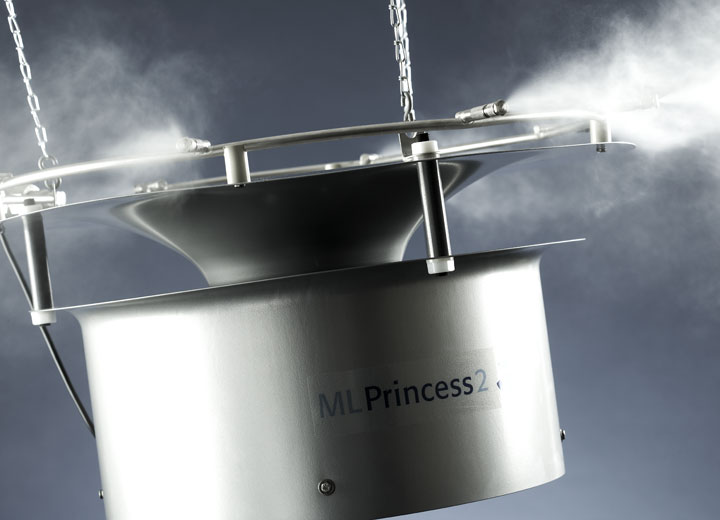

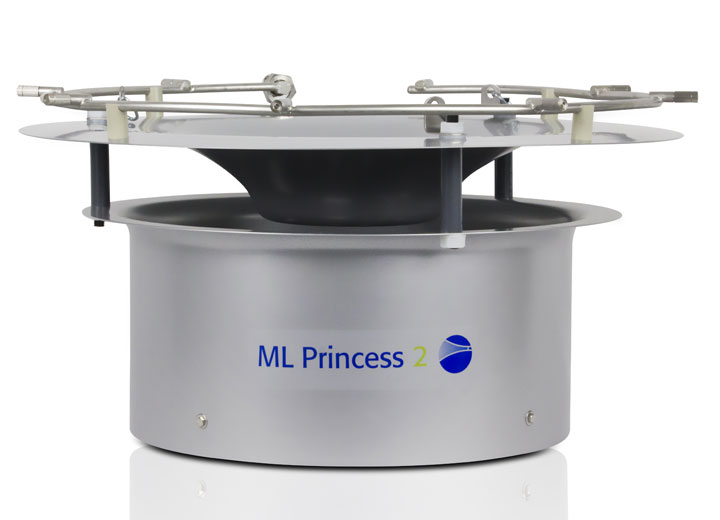

Condair ML-Princess
High pressure spray humidifier

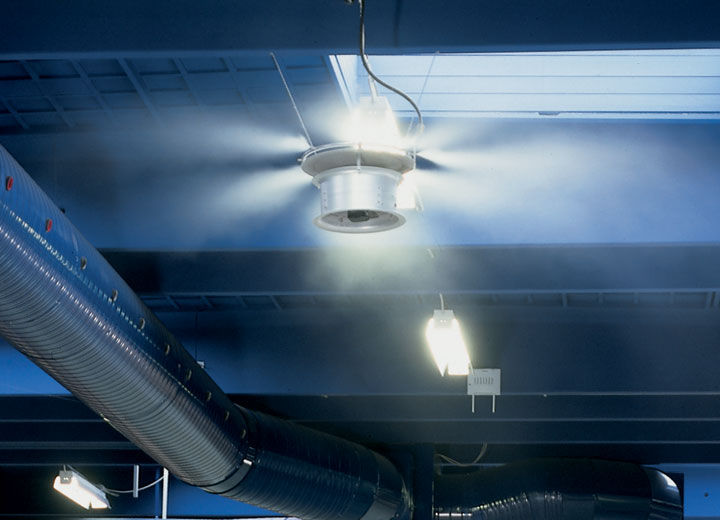

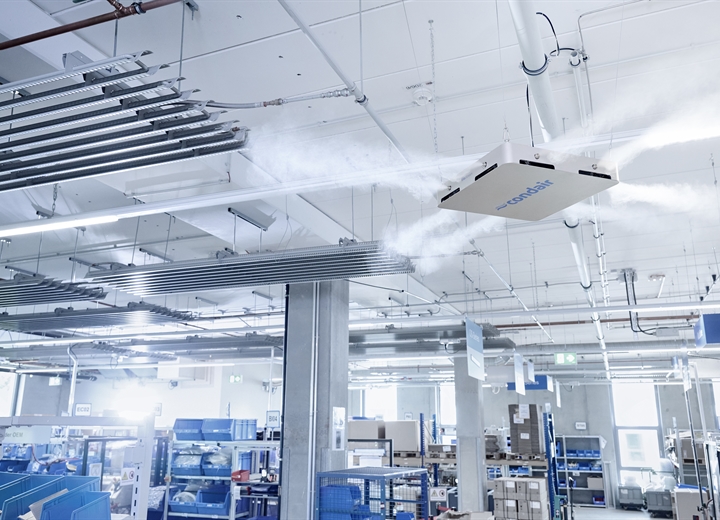

The ML-Princess is a ceiling mounted humidifier delivering between 12-54l/h per distribution unit. It is ideal for use in production areas and doesn't require a compressed air supply.

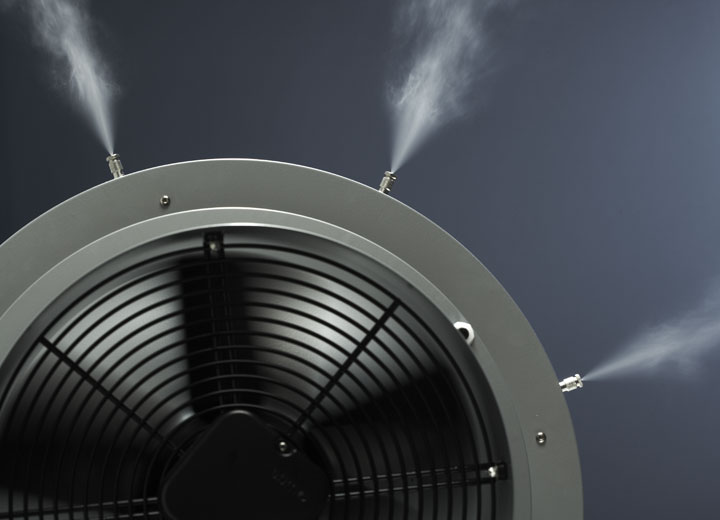

An integrated fan draws air from below and distributes the moisture particles for rapid evaporation in the atmosphere and uniform humidification in a room.
The system has very low energy consumption with a single distribution unit providing up to 54kg/h while operating on just 120W.
Features & benefits
- Low energy direct air humidifier
- Quiet operation as no compressed air needed
- Operates on RO water so does not introduce dust to an environment
- Uniform humidity distribution with 360° spray design

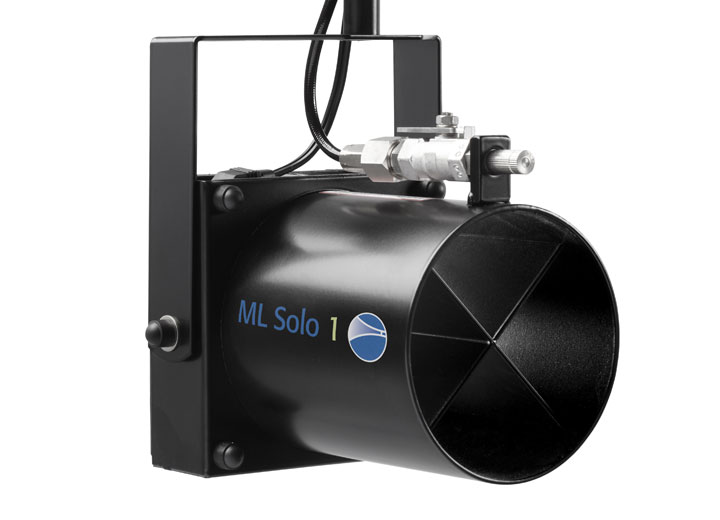

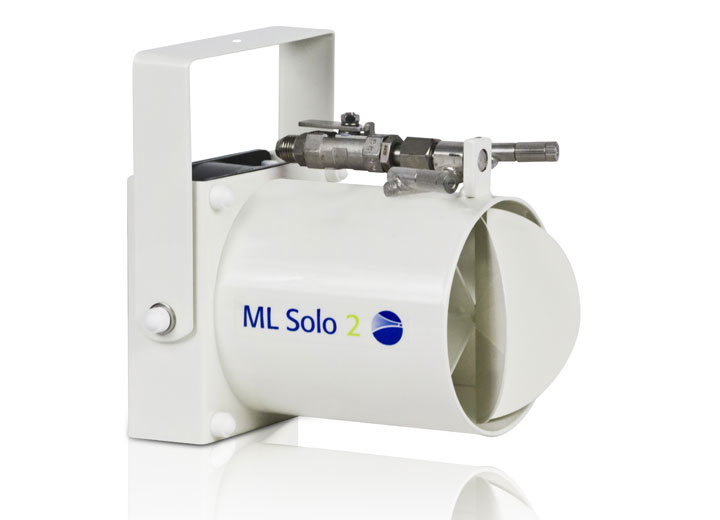

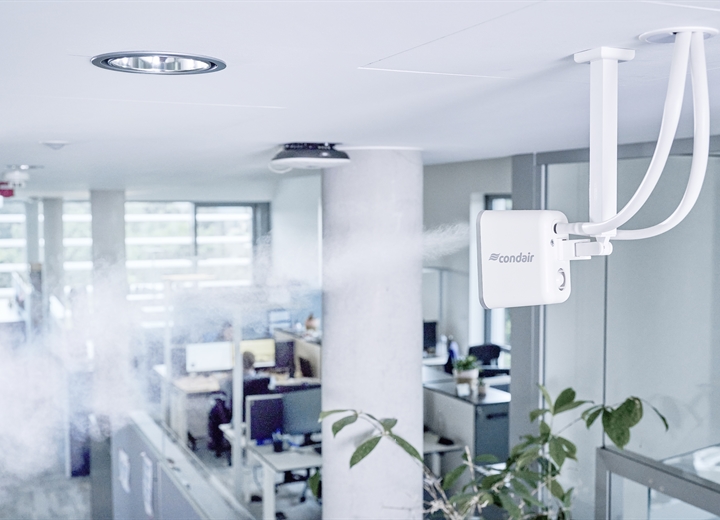

Wall or ceiling mounted, high pressure in-room humidification system with fan unit
Provides low energy humidification and evaporative cooling to a room's atmosphere
Spray units can deliver between 1.5-5 litres per hour and are available in white, black or grey
Pump station can provide water UV sterlisation, softening, particle and RO filtration as well as pressurisation

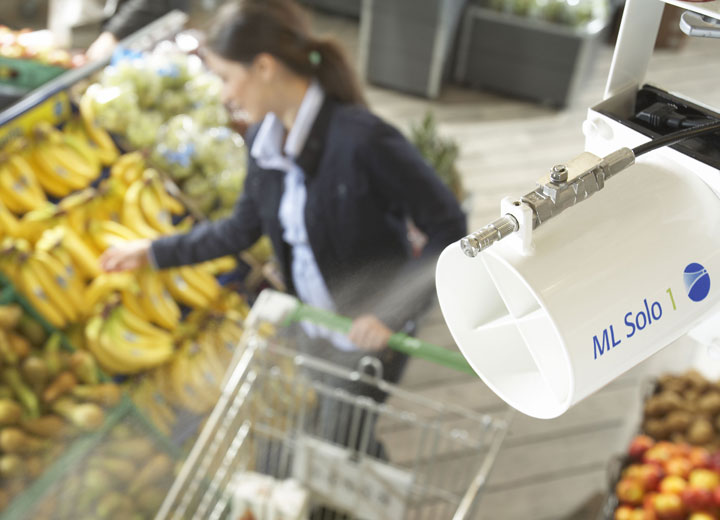

Condair ML-Solo
High pressure spray humidifier
The ML-Solo high pressure humidifier provides low energy humidity control and evaporative cooling directly to a room's atmosphere. A series of spray units are strategically located in the area being humidified and are connected to a high pressure pump and water treatment system. Supply water is filtered to remove any minerals and then supplied to the spray units at between 50-70bar.
The nozzles can be suspended from a ceiling or mounted on a wall. Adjustable joints allow their sprays to be directed. A fan unit under the nozzles encourages evaporation and assists in directional control.
Features & benefits
- No compressed air required so quiet in operation
- Available in white, grey or black
- Ceiling or wall mounted spray units
- Operates on RO water so does not introduce dust to a room

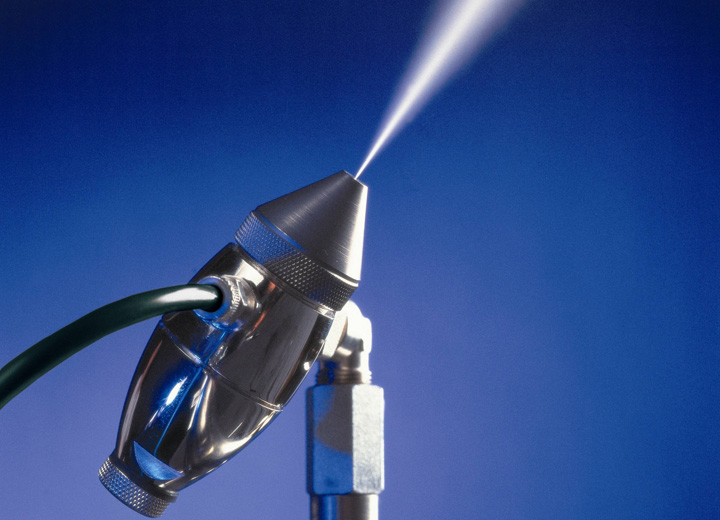

Precision engineered nozzles with a 10-year warranty
Compressed air guarantees drip-free operation
Works with mains water - no need for a demineralised water supply
Fan-free design ensures robust performance in dusty environments
Very low maintenance requirement makes JetSpray ideal for industrial use
System easy to install for any competent HVAC contractor - no special tools

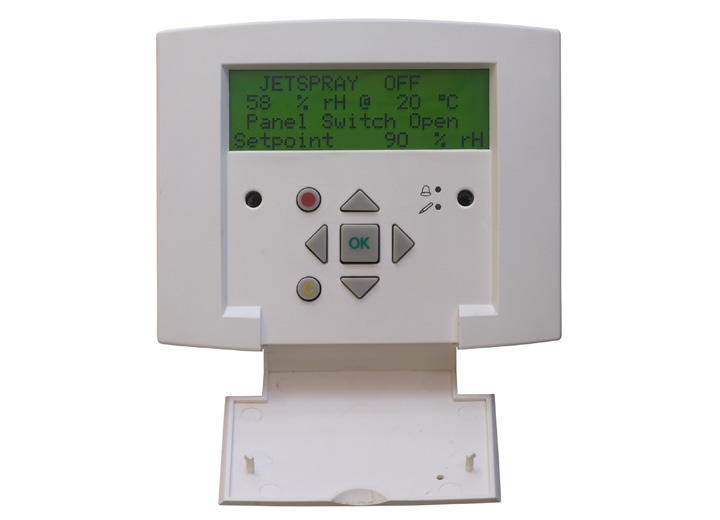

Intuitive, backlit user interface. System can also be connected to BMS.

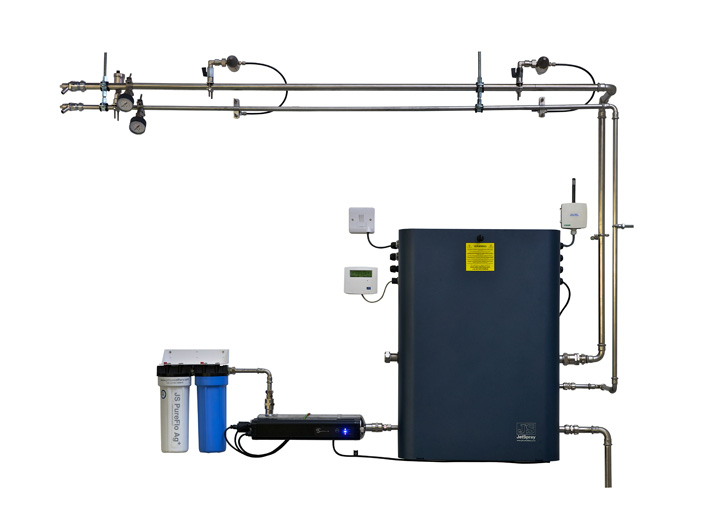

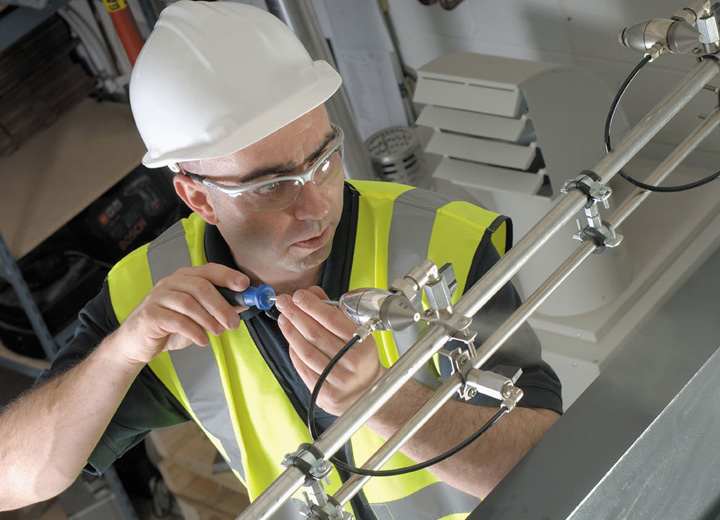

Condair JetSpray
Compressed air & water spray humidifier

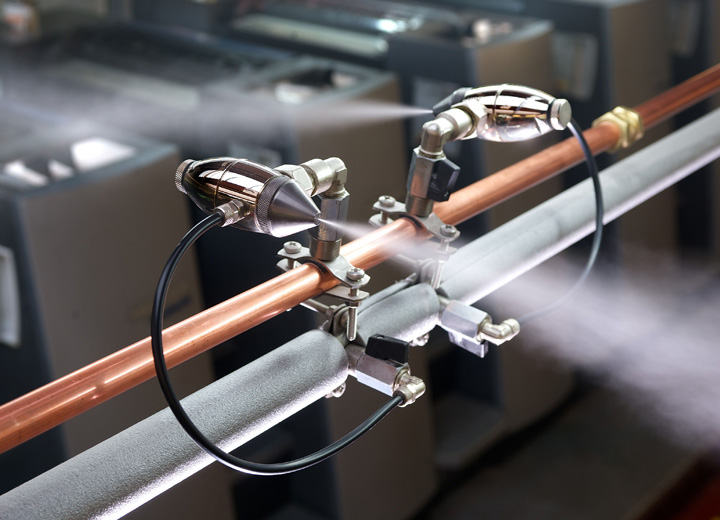

The JetSpray provides very accurate humidity control directly to a room's atmosphere using a combination of compressed air and water. A series of strategically located nozzles provides consistent humidity throughout a room.
The use of compressed air ensures very rapid moisture evaporation without the risk of wetting or drips and highly directional spray aerosols. Self-cleaning nozzles allow the humidifier to operate on mains water without the need for RO water filtration, thus reducing overall water consumption.
Features & benefits
- Robust self-cleaning design for industrial use
- Accurate and consistent humidity across an area
- Can run on mains or RO water
- Easy to install and operate
- 0-100% modulation for close control
- Ideal for cold store environments
Condair ABS3 has an output of up to 6.5l/h, requires mains water connection and can be wall or ceiling mounted. A 0.05l water reservoir ensures virtually continual water consumption with minimal standing water.
The Condair 3001 provides up to 3l/h, can be plumbed to a mains water supply or manually filled and has a 6l water tank. Also incorporates an auto shut down should the water level fall too low.
The Condair 505 offers vertical or horizontal mist distribution, 0.5l/h output and can be plumbed-in to a mains supply or filled manually with a 5l water tank
Condair Rotary Disk Atomizers
Economic misting systems
The Condair range of rotary-disk atomisers present excellent value for money for small to medium sized production and storage facilities. Characterised by low energy consumption and high misting performance, these units are easy to install and set up with a long operational lifetime.
These rotary atomisers can be connected to the water mains for continual operation and some can also be manually filled.
Features & benefits
- Economic humidification systems
- Easy to expand by simpyl adding more units
- High performance and long service lifetime
