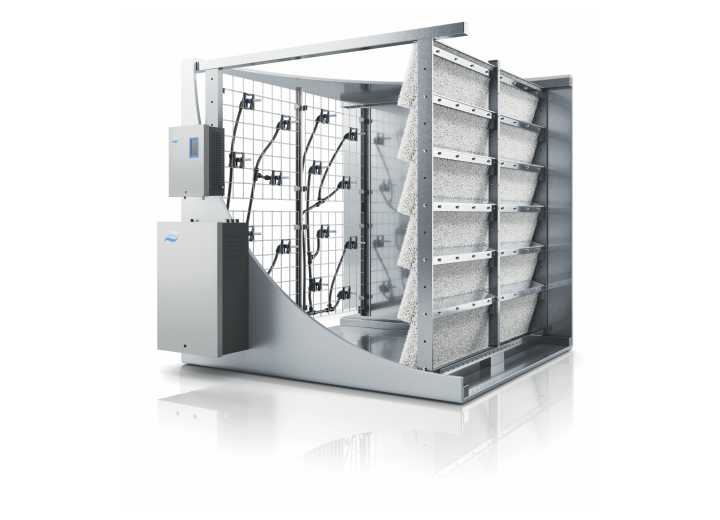

The Condair DL hybrid humidifier is based exclusively on the advantages of the two humidification principles of atomization and evaporation.

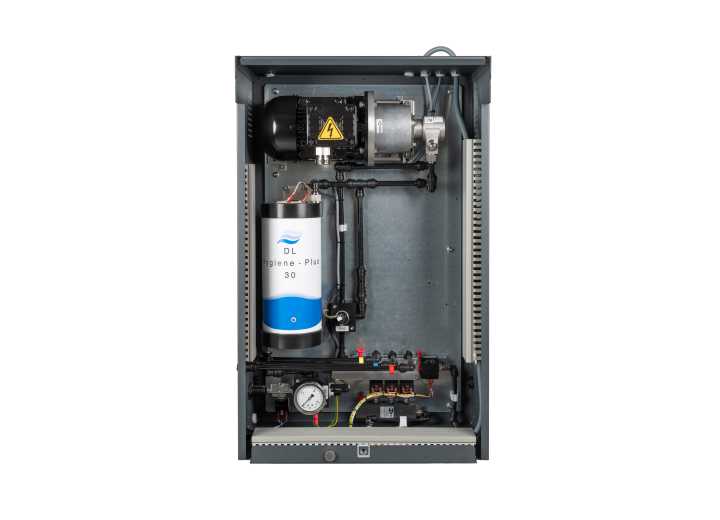

The Control unit is the heart of the Condair DL hybrid humidifier. The control and regulation operations take place here.
The DL features a modernized control and central housing unit.
The HygienePlus® system ensures sustainably healthy air and a hygienic environment. Having adequate relative humidity is of great importance.

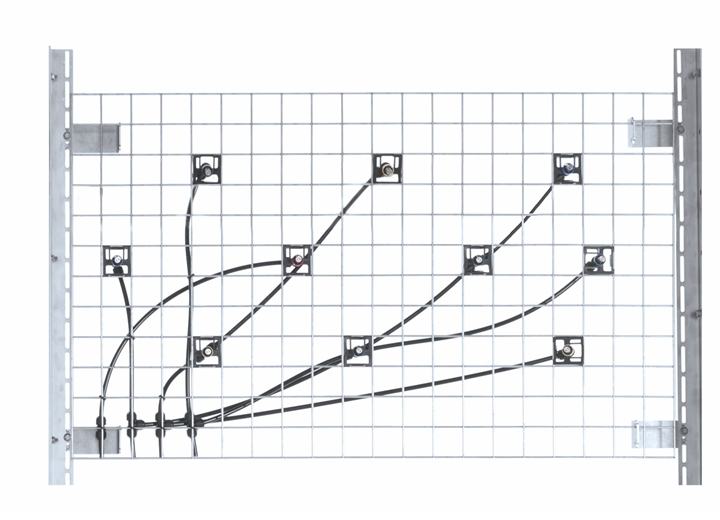

The optimal layout of the atomizing nozzles ensures uniform humidity distribution. Electrical current consumption is low because of the low-pressure operation.
Condair DL
Hybrid humidifier
Two adiabatic humidification methods intelligently combined for industrial and commercial applications
The Condair DL hybrid humidifier is based exclusively on the advantages of the two humidification principles of atomization and evaporation. This results in the sustainable resolution of key problems which can emerge when these technologies are used individually. The humidification system is therefore the first choice in terms of hygiene, energy efficiency and cost-effectiveness.
Features & benefits
100% hygiene guarantee – a unique, trusted hygiene standard

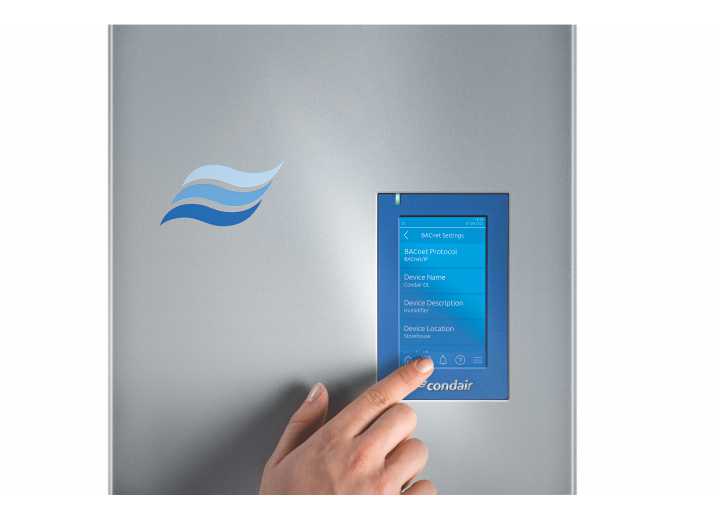

Intuitive touch controller allows perfect connection to the building management system and optimal process transparency
Efficient low-pressure systems for significant energy savings
Internally mounted hydraulic unit for simple installation

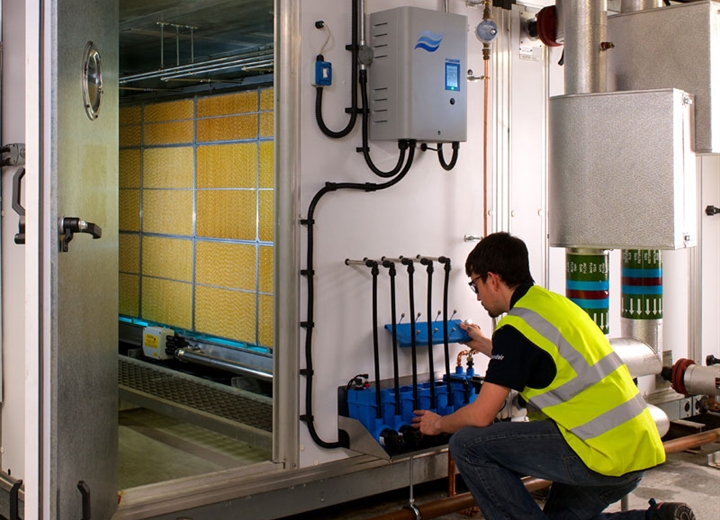

The hydraulic unit can be mounted inside or outside of the AHU
Externally mounted hydraulic unit for reduced AHU downtime

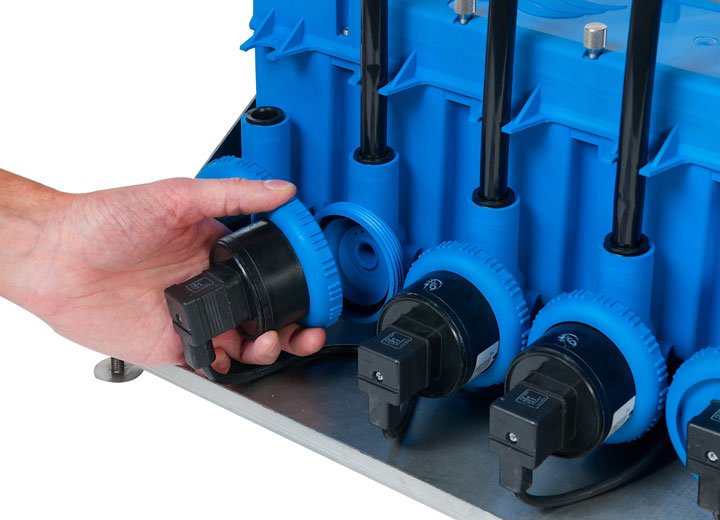

Multiple low energy pumps give up to five stage control as standard
In-tank UV water purification for hygienic operation
Touch screen control panel for easy user operation and reporting

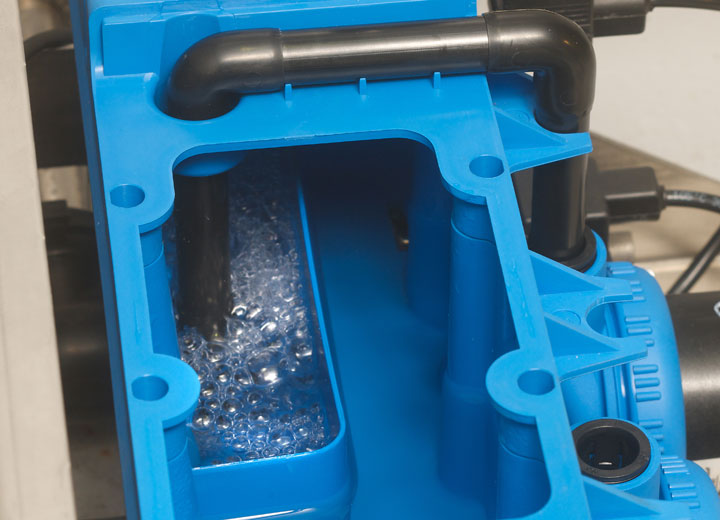

Pump assisted drain removes more scale and decreases service requirements

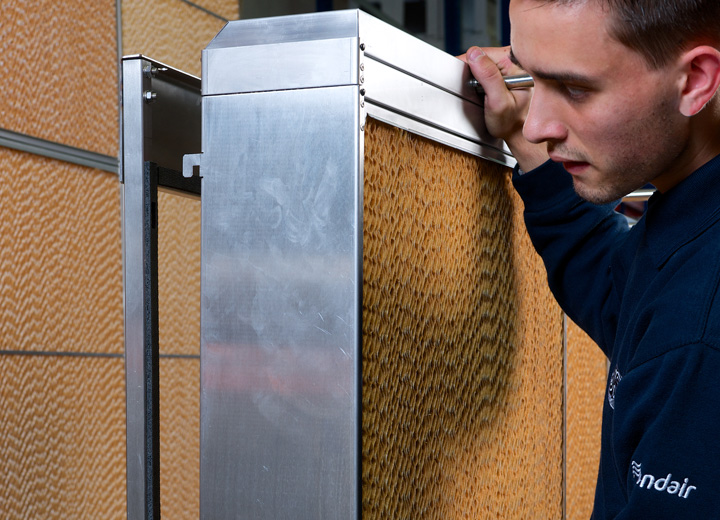

Easy modular construction
Up to 630W of cooling for every 1kg of humidification delivered

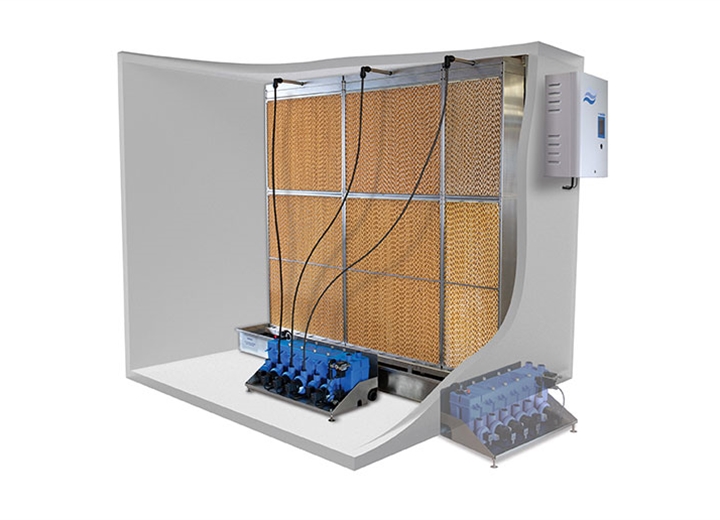

Condair ME
Evaporative humidifier and cooler

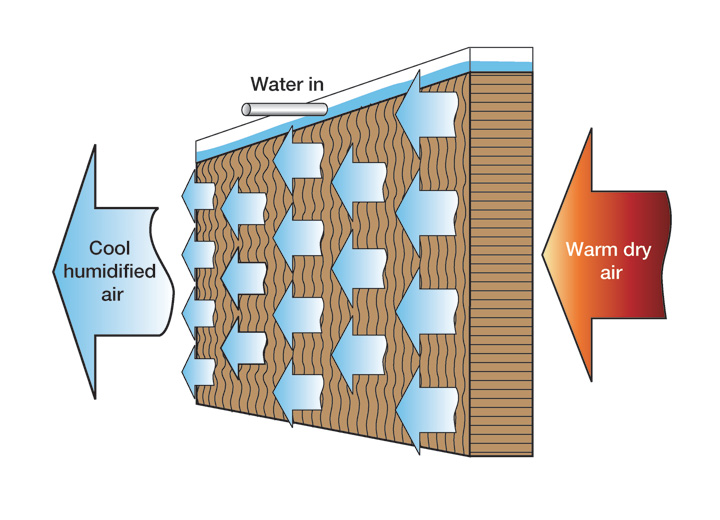

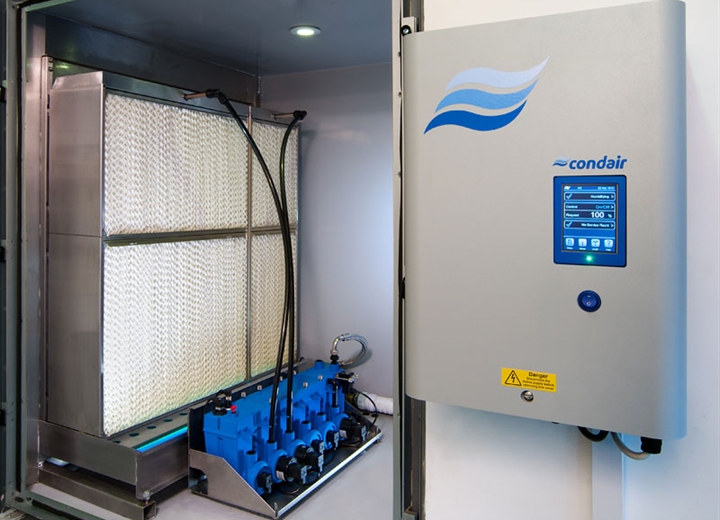

The Condair ME provides low energy humidity control and evaporative cooling to an air handling unit or duct.
A single unit can provide up to 1,000kg/hr of humidification and 630kW of evaporative cooling to an air stream while operating on less than 0.3kW of electricity. As well as being economic to run the Condair ME is also easy to operate with an advanced touch screen control panel, simple to maintain with industry leading service features and employs the latest in hygiene technology.
Use the myCoolblue app, a simulation tool from Condair to determine how much energy you can save by using an indirect evaporative cooling system.
Features & benefits
- High humidification and cooling duties from a single unit
- Very low energy consumption
- Instant evaporation for short section length
- In-duct or externally located hydraulic unit
- Latest touch screen control technology
- Can operate on mains or RO water
The Condair HP is ideal for use in penthouse ventilation systems and high capacity evaporative cooling applications
A single high pressure pump station can provide demineralised water to nozzles in mulitple AHUs

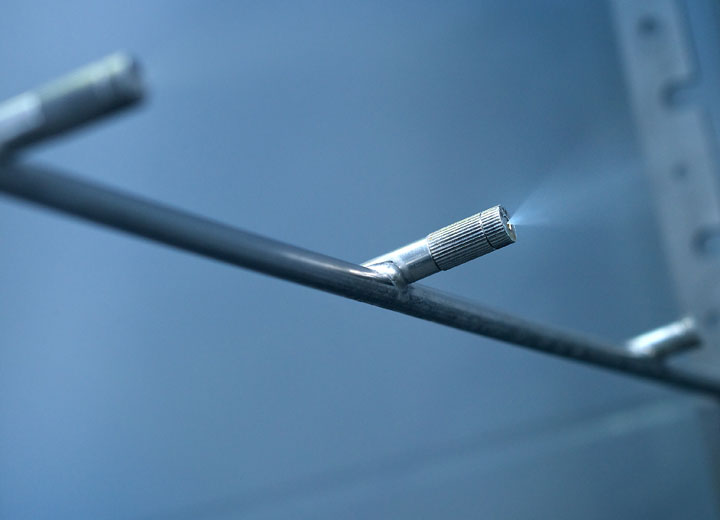

A series of nozzles located inside the AHU release a fine mist towards a droplet separator
Moisture is distributed unyformly accross the duct, providing consistent humidity control. Droplets are removed by a droplet separator.
Condair HP
High pressure in-duct spray humidifier
The Condair HP delivers adiabatic humidification and cooling to an air handling unit (AHU) or duct. A series of nozzles mounted across the air stream atomise water under high pressure creating a fine mist that is rapidly absorbed.
A droplet separator downstream removes any unevaporated moisture from the air ensuring droplet-free humidification.
Features & benefits
- Can supply multiple AHUs from one pump station with up to 1,300kg/h total output
- Low energy, high capacity humidification and cooling
- High quality stainless steel construction
- Oil-free high pressure pump with 8,000 hour warranty
- Hygienic operation with UV sterlization and flush cycles
